Air Conditioning Zoning
Separate Room Thermostats control Motorized
Zone Dampers and Air Conditioning System
Each Room Thermostat
controls the amount of
air conditioning needed
to maintain the users
temperature settings in
that area of the home.
Other Thermostats
control
independently in other
areas, all off of the same
air conditioning system.
The system automatically
shifts from high to low
speed modes as needed
to satisfy all zones.
ZONE 1
ZONE 2
Damper 1
Damper 2

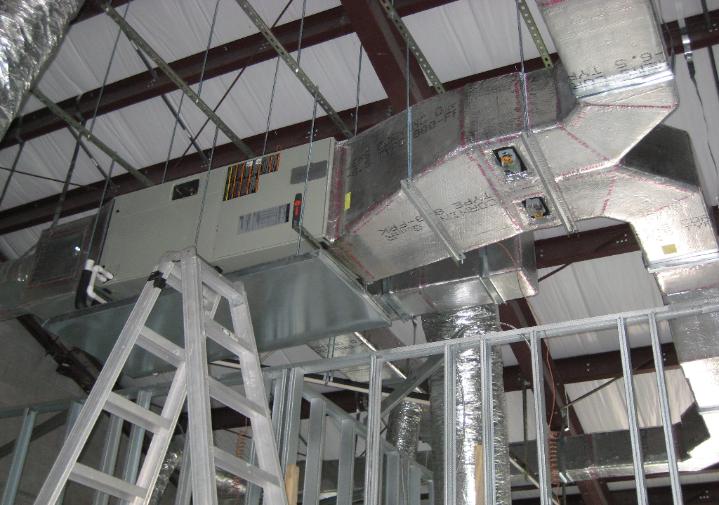

This 2 Zone Installation controls a 2-Stage Air Conditioning
System that serves two separate areas of the same office.
When both thermostats require the system to
operate in cooling mode, both zone dampers
open and the system operates in high speed.
When only one thermostat requires the system to operate in
cooling mode, only one damper opens and the system runs
in low speed. Each separate space temperature is maintained
independently ; system capacity is varied proportionally.
